Valnex IndustriesMould Temp Controller
Critical thermal regulation units to maintain precise mould conditions.
Two series on one frame: five oil-circulating models reaching 180 °C and four water-circulating models reaching 95 °C. Choice of medium is set by the temperature the process needs rather than by unit size — a water model and an oil model of the same heating capacity share their pump, flow and tank.
- Models
- VAL-O-3 – VAL-O-18, VAL-W-3 – VAL-W-18 (9)
- Circulating media
- Oil / Water
- Max. temperature
- 180 °C oil / 95 °C water
- Heating capacity
- 3 – 18 kW
- Nominal cooling capacity
- 20 – 28 kW
- Pump motor
- 0.5 – 2.2 kW at 3.8 – 5 bar
- Flow rate
- 65 – 150 LPM
- Tank volume
- 16 – 45 L
- Injection moulding
- Die casting
- Extrusion
Send a duty cycle, a drawing, or just the problem. The inquiry arrives tagged to Mould Temp Controller.
Start an inquiryEvery model, as published

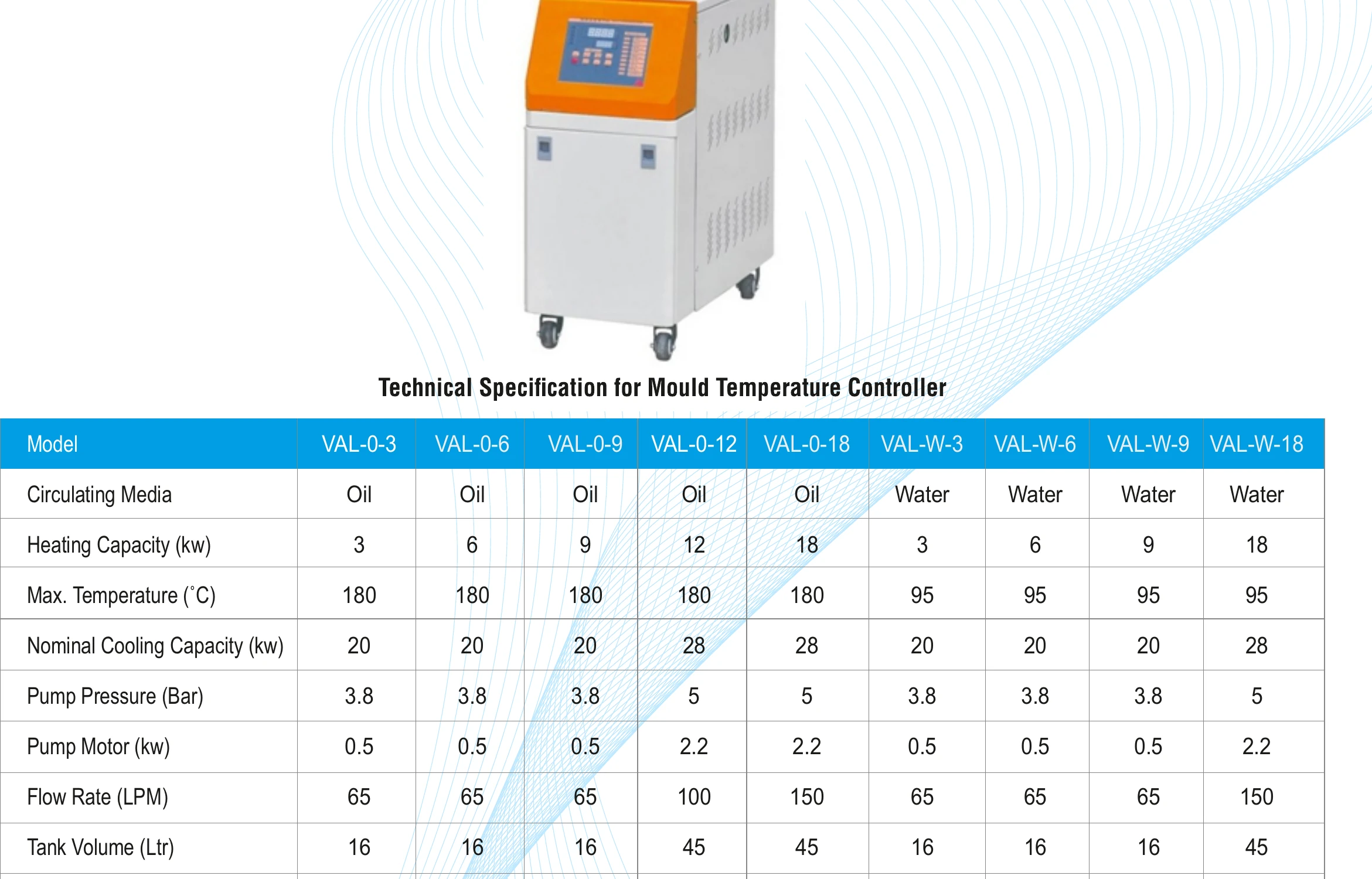

The figures above are the range across the series. These are the figures model by model, from the Valnex New Catalogue 2025. Customised versions are built to a client’s specification on request.
Oil and water series
9 models| Model | VAL-O-3 | VAL-O-6 | VAL-O-9 | VAL-O-12 | VAL-O-18 | VAL-W-3 | VAL-W-6 | VAL-W-9 | VAL-W-18 |
|---|---|---|---|---|---|---|---|---|---|
| Circulating media | Oil | Oil | Oil | Oil | Oil | Water | Water | Water | Water |
| Max. temperature (°C) | 180 | 180 | 180 | 180 | 180 | 95 | 95 | 95 | 95 |
| Heating capacity (kW) | 3 | 6 | 9 | 12 | 18 | 3 | 6 | 9 | 18 |
| Nominal cooling capacity (kW) | 20 | 20 | 20 | 28 | 28 | 20 | 20 | 20 | 28 |
| Pump pressure (bar) | 3.8 | 3.8 | 3.8 | 5 | 5 | 3.8 | 3.8 | 3.8 | 5 |
| Pump motor (kW) | 0.5 | 0.5 | 0.5 | 2.2 | 2.2 | 0.5 | 0.5 | 0.5 | 2.2 |
| Flow rate (LPM) | 65 | 65 | 65 | 100 | 150 | 65 | 65 | 65 | 150 |
| Tank volume (L) | 16 | 16 | 16 | 45 | 45 | 16 | 16 | 16 | 45 |
| Weight (kg) | 60 | 60 | 60 | 100 | 120 | 60 | 60 | 60 | 120 |
| Operating voltage | 415 V, 50 Hz, 3-phase with neutral and earthing | ||||||||
| Control voltage | 230 V | ||||||||
O — oil-circulating; W — water-circulating.
