Valnex IndustriesFlake Cutter
High-performance size reduction equipment for consistent, clean flake processing.
Ten models across two series: seven sized by grinding chamber, from a 230 × 200 mm beside-the-press unit to a 960 × 610 mm central granulator, and three rated by motor. Throughput runs from 100 to 1000 kg/h against a 8 – 12 mm screen, so runners and rejects come back as regrind at a size the machine that made them can take.
- Models
- VAL-230 – VAL-960, VAL-10/15/20 HP (10)
- Throughput
- 100 – 1000 kg/h
- Grinding chamber
- 230×200 – 960×610 mm
- Motor
- 4 – 57 kW (5 – 75 HP)
- Rotary cutters
- 6 – 30
- Screen mesh
- 8 – 12 mm
- Max. cutting thickness
- 1.5 – 14 mm
- Beside-the-press regrind
- Central granulation
- Runner and reject recovery
Send a duty cycle, a drawing, or just the problem. The inquiry arrives tagged to Flake Cutter.
Start an inquiryEvery model, as published
The figures above are the range across the series. These are the figures model by model, from the Valnex New Catalogue 2025. Customised versions are built to a client’s specification on request.

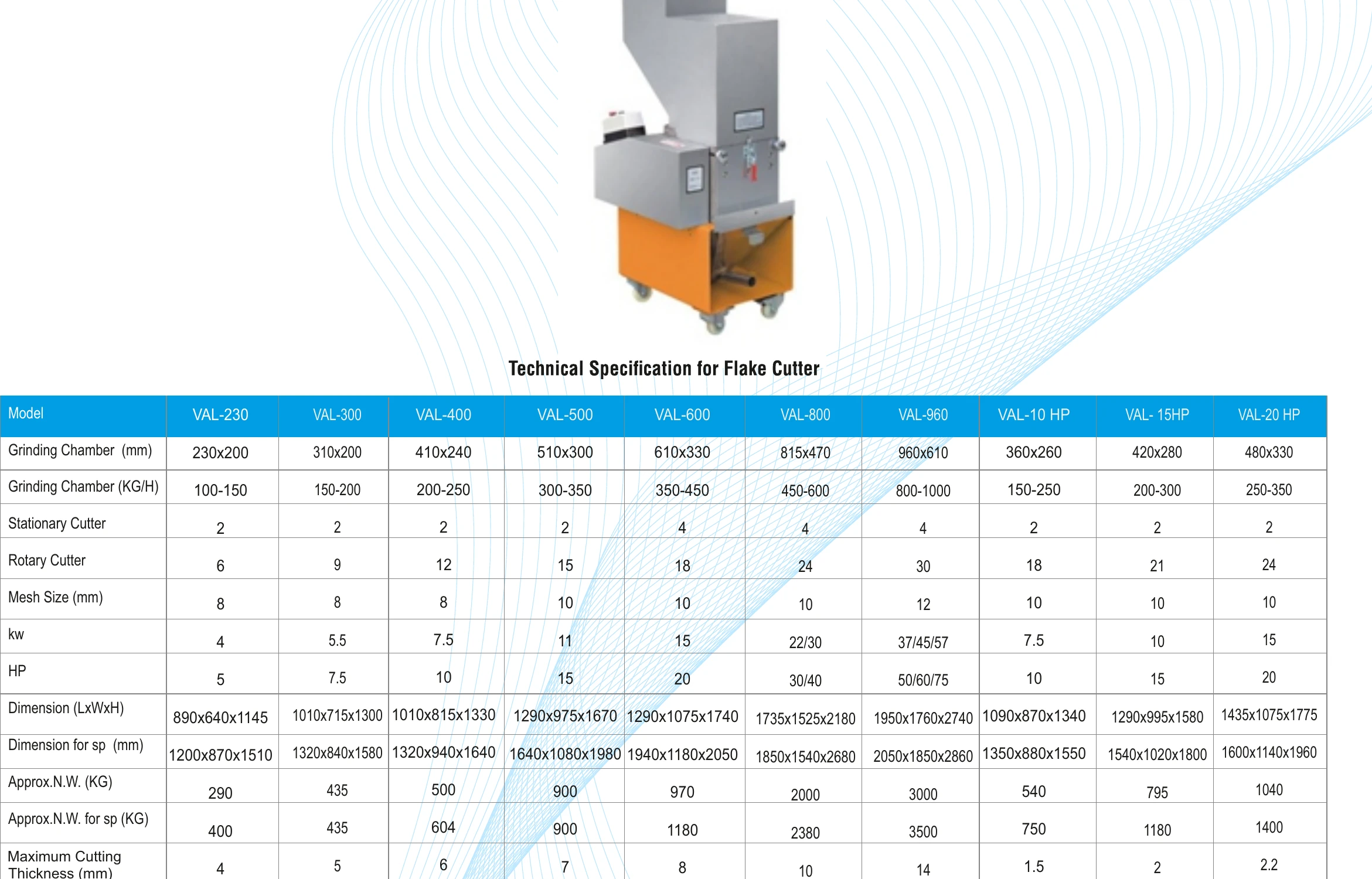

Flake cutter series
10 models| Model | VAL-230 | VAL-300 | VAL-400 | VAL-500 | VAL-600 | VAL-800 | VAL-960 | VAL-10 HP | VAL-15 HP | VAL-20 HP |
|---|---|---|---|---|---|---|---|---|---|---|
| Grinding chamber (mm) | 230 × 200 | 310 × 200 | 410 × 240 | 510 × 300 | 610 × 330 | 815 × 470 | 960 × 610 | 360 × 260 | 420 × 280 | 480 × 330 |
| Throughput (kg/h) | 100 – 150 | 150 – 200 | 200 – 250 | 300 – 350 | 350 – 450 | 450 – 600 | 800 – 1000 | 150 – 250 | 200 – 300 | 250 – 350 |
| Stationary cutters | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 2 | 2 | 2 |
| Rotary cutters | 6 | 9 | 12 | 15 | 18 | 24 | 30 | 18 | 21 | 24 |
| Screen mesh (mm) | 8 | 8 | 8 | 10 | 10 | 10 | 12 | 10 | 10 | 10 |
| Motor (kW) | 4 | 5.5 | 7.5 | 11 | 15 | 22 / 30 | 37 / 45 / 57 | 7.5 | 10 | 15 |
| Motor (HP) | 5 | 7.5 | 10 | 15 | 20 | 30 / 40 | 50 / 60 / 75 | 10 | 15 | 20 |
| Max. cutting thickness (mm) | 4 | 5 | 6 | 7 | 8 | 10 | 14 | 1.5 | 2 | 2.2 |
| Dimensions, L × W × H (mm) | 890 × 640 × 1145 | 1010 × 715 × 1300 | 1010 × 815 × 1330 | 1290 × 975 × 1670 | 1290 × 1075 × 1740 | 1735 × 1525 × 2180 | 1950 × 1760 × 2740 | 1090 × 870 × 1340 | 1290 × 995 × 1580 | 1435 × 1075 × 1775 |
| Approx. net weight (kg) | 290 | 435 | 500 | 900 | 970 | 2000 | 3000 | 540 | 795 | 1040 |
| Dimensions, SP (mm) | 1200 × 870 × 1510 | 1320 × 840 × 1580 | 1320 × 940 × 1640 | 1640 × 1080 × 1980 | 1940 × 1180 × 2050 | 1850 × 1540 × 2680 | 2050 × 1850 × 2860 | 1350 × 880 × 1550 | 1540 × 1020 × 1800 | 1600 × 1140 × 1960 |
| Approx. net weight, SP (kg) | 400 | 435 | 604 | 900 | 1180 | 2380 | 3500 | 750 | 1180 | 1400 |
VAL-10 HP to VAL-20 HP are a separate motor-rated series, not a continuation of the chamber sizes. “SP” is the catalogue’s own designation.
