Valnex IndustriesAir/Water Cooled Chillers
Industrial cooling systems designed for precision temperature control and maximum uptime.

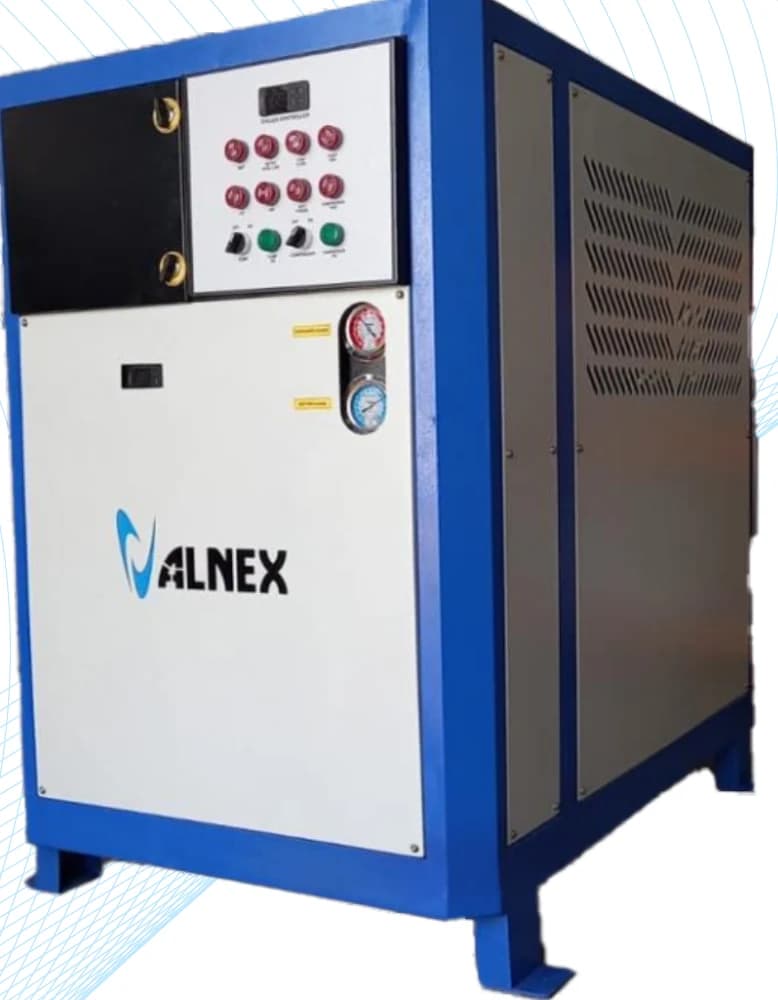

Fourteen air-cooled models from 2 to 59 TR, each pairing a scroll compressor with an integrated process pump and buffer tank, so the machine arrives as one skid rather than as a chiller plus a pump set to be matched on site. Every model runs on R-22, R-407C or R-410. The figures below describe the air-cooled range; the water-cooled series is built to order and is not specified in the printed catalogue.
- Air-cooled models
- VI 02A – VI060A (14)
- Cooling capacity
- 2 – 59 TR
- Compressor
- 2.5 – 27.6 kW
- Refrigerant
- R-22 / R-407C / R-410
- Process pump
- 0.46 – 7.5 kW
- Process pump flow
- 55 – 880 LPM
- Max. pressure
- 2.4 – 5.6 bar
- Injection moulding
- Blow moulding
- Extrusion
- General process cooling
Send a duty cycle, a drawing, or just the problem. The inquiry arrives tagged to Air/Water Cooled Chillers.
Start an inquiryEvery model, as published
The figures above are the range across the series. These are the figures model by model, from the Valnex New Catalogue 2025. Customised versions are built to a client’s specification on request.

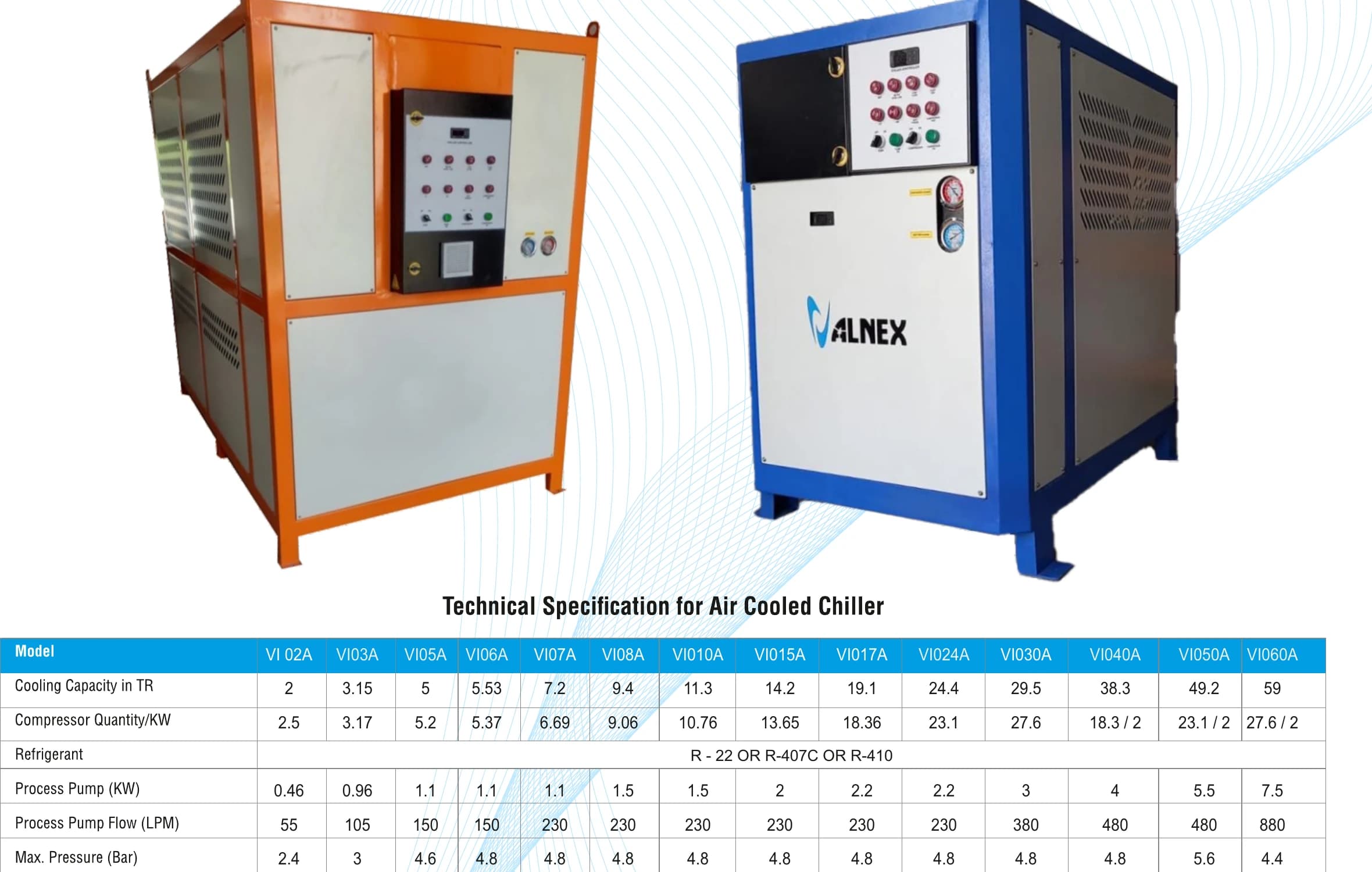

Air-cooled series
14 models| Model | VI02A | VI03A | VI05A | VI06A | VI07A | VI08A | VI010A | VI015A | VI017A | VI024A | VI030A | VI040A | VI050A | VI060A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling capacity (TR) | 2 | 3.15 | 5 | 5.53 | 7.2 | 9.4 | 11.3 | 14.2 | 19.1 | 24.4 | 29.5 | 38.3 | 49.2 | 59 |
| Compressor (kW) | 2.5 | 3.17 | 5.2 | 5.37 | 6.69 | 9.06 | 10.76 | 13.65 | 18.36 | 23.1 | 27.6 | 18.3 / 2 | 23.1 / 2 | 27.6 / 2 |
| Refrigerant | R-22 / R-407C / R-410 | |||||||||||||
| Process pump (kW) | 0.46 | 0.96 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | 2 | 2.2 | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Process pump flow (LPM) | 55 | 105 | 150 | 150 | 230 | 230 | 230 | 230 | 230 | 230 | 380 | 480 | 480 | 880 |
| Max. pressure (bar) | 2.4 | 3 | 4.6 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 5.6 | 4.4 |
| Water tank (L) | 40 | 100 | 100 | 100 | 150 | 150 | 150 | 200 | 200 | 200 | 300 | 500 | 500 | 1000 |
| Fans (qty / kW) | 1 / 0.25 | 1 / 0.8 | 2 / 0.5 | 2 / 0.5 | 2 / 1.2 | 2 / 1.2 | 2 / 1.2 | — | — | 4 / 3.2 | 4 / 3.2 | 6 / 4.8 | 8 / 6.4 | 8 / 6.4 |
| Process connection, in/out (BSP) | 1" | 1" | 1" | 1" | 1½" | 1½" | 1½" | 1½" | 1½" | 1½" | 2" | 2" | 2" | 2½" |
| Length (mm) | 1100 | 1600 | 1700 | 1700 | 1850 | 1850 | 1850 | 2100 | 2300 | 2750 | 2750 | 3350 | 3900 | 3900 |
| Width (mm) | 775 | 1025 | 1025 | 1025 | 1125 | 1125 | 1125 | 1475 | 1475 | 1705 | 1705 | 1705 | 2000 | 2000 |
| Height (mm) | 1300 | 1700 | 1700 | 1700 | 1750 | 1750 | 1750 | 1950 | 2100 | 2200 | 2200 | 2200 | 2350 | 2600 |
| Weight (kg) | 150 | 300 | 500 | 500 | 700 | 700 | 700 | 900 | 1000 | 1100 | 1500 | 1600 | 2000 | 2200 |
| Connected load (kW) | 3.21 | 4.93 | 6.8 | 6.97 | 8.99 | 11.76 | 13.46 | 18.05 | 23.68 | 28.5 | 33.8 | 45.4 | 58.2 | 69.1 |
“18.3 / 2” denotes two compressors. A dash is printed as such in the catalogue.
Swipe the table sideways for every model.
Water-cooled series
14 models| Model | VI02W | VI03W | VI05W | VI06W | VI07W | VI08W | VI010W | VI015W | VI017W | VI024W | VI030W | VI040W | VI050W | VI060W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling capacity (TR) | 2.7 | 3.47 | 5.82 | 6.44 | 8 | 10.43 | 12.4 | 15.67 | 21.3 | 27.5 | 32.7 | — | 55 | 65.5 |
| Refrigerant | R-22 / R-407C / R-410 | |||||||||||||
| Process pump (kW) | 0.46 | 0.96 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | 2 | 2.2 | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Process pump flow (LPM) | 55 | 105 | 150 | 150 | 230 | 230 | 230 | 230 | 230 | 230 | 380 | 480 | 480 | 880 |
| Max. pressure (bar) | 2.4 | 3 | 4.6 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 5.6 | 4.4 |
| Water tank (L) | 40 | 100 | 100 | 100 | 100 | 150 | 150 | 200 | 200 | 200 | 300 | 500 | 500 | 1000 |
| Condenser cooling tower (TR) | 5 | 5 | 8 | 10 | 10 | 15 | 20 | 30 | 32 | 35 | 40 | 55 | 70 | 85 |
| Condenser water flow (LPM) | 50 | 70 | 130 | 150 | 180 | 220 | 240 | 300 | 320 | 350 | 400 | 600 | 800 | 900 |
| Condenser water, in/out (BSP) | 1" | 1" | 1" | 1" | 1½" | 1½" | 1½" | 1½" | 1½" | 1½" | 2" | 2" | 2" | 2" |
| Process connection, in/out (BSP) | 1" | 1" | 1" | 1" | 1½" | 1½" | 1½" | 1½" | 1½" | 1½" | 2" | 2" | 2" | 2½" |
| Weight (kg) | 150 | 150 | 400 | 400 | 800 | 800 | 800 | 850 | 850 | 900 | 1300 | 2000 | 2000 | 2000 |
| Connected load (kW) | 2.35 | 3.16 | 4.9 | 5.08 | 6.27 | 8.06 | 9.55 | 12.2 | 16.35 | 20.2 | 24.5 | — | 41.7 | 48.5 |
A dash is printed as such in the catalogue.
