Laser Marking Machine
High-speed, precision marking systems for permanent part identification and traceability.
MarkingTraceability
Overview
A 30 W or 50 W pulsed fibre laser on a floor-standing cabinet, built to mark product moving past it rather than parts placed under it. Air-cooled with no consumables, a touch control system and a centrifugal fume extractor; the two models are identical apart from laser power.
Specifications
- Models
- VAL-30 / VAL-50
- Laser type
- Pulsed fibre, 1064 nm
- Laser power
- 30 W / 50 W
- Marking area
- 150 × 150 mm
- Marking type
- On-the-fly
- Materials
- LLDP / DRIP / HDPE / PVC
- Min. marking height
- 0.1 mm
- Supply
- 220 V AC, 50–60 Hz, 750 W
Applications
- In-line coding on moving product
- Batch and traceability codes
- Permanent part identification
Ask about this equipment
Send a duty cycle, a drawing, or just the problem. The inquiry arrives tagged to Laser Marking Machine.
Start an inquiryFull specification
Every model, as published

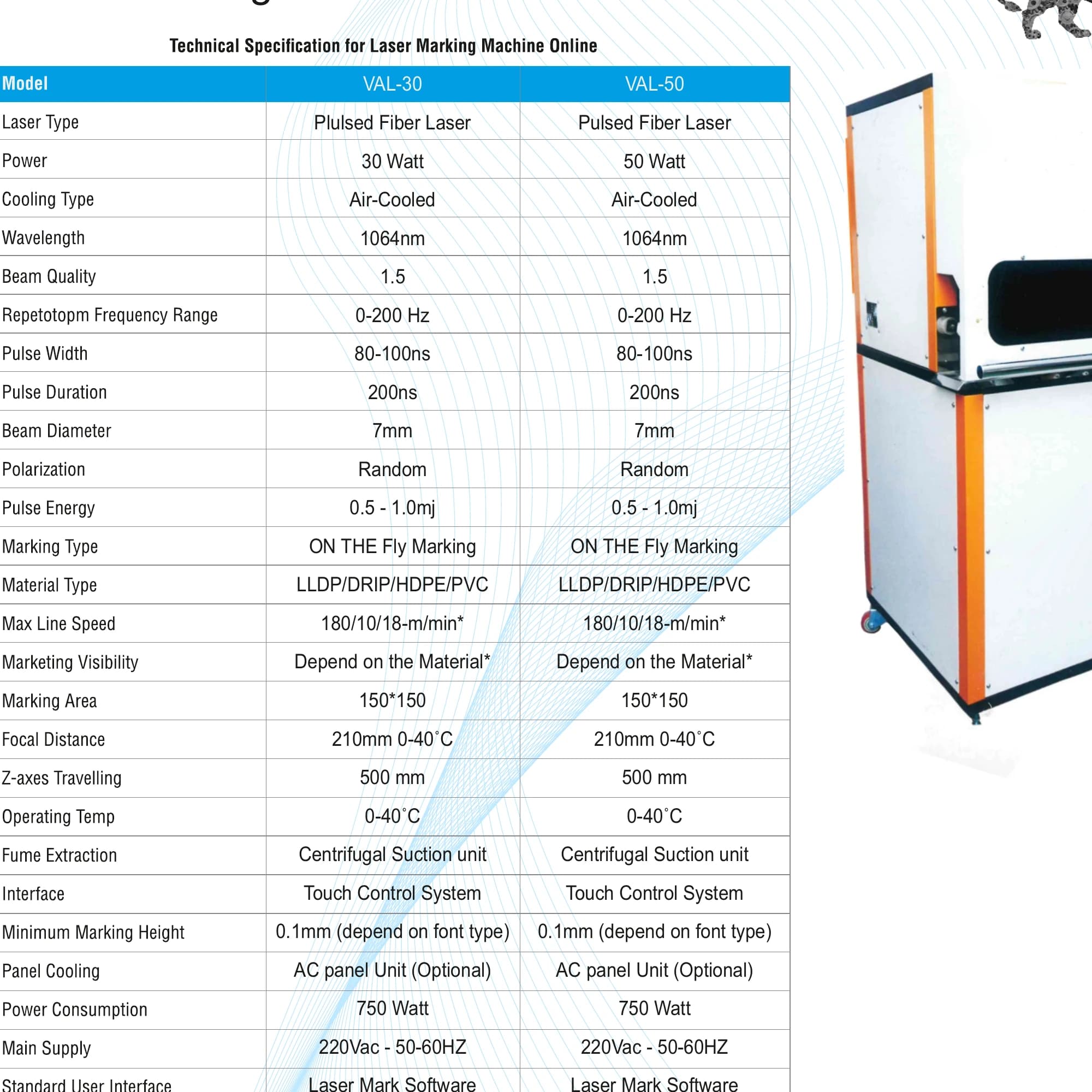

The figures above are the range across the series. These are the figures model by model, from the Valnex New Catalogue 2025. Customised versions are built to a client’s specification on request.
Online laser marking machine
2 models| Model | VAL-30 | VAL-50 |
|---|---|---|
| Laser power | 30 W | 50 W |
| Laser type | Pulsed fibre laser | |
| Wavelength | 1064 nm | |
| Cooling | Air-cooled | |
| Beam quality | 1.5 | |
| Beam diameter | 7 mm | |
| Pulse energy | 0.5 – 1.0 mJ | |
| Marking type | On-the-fly | |
| Materials | LLDP / DRIP / HDPE / PVC | |
| Speed synchronisation | Rotary encoder, depending on controller option | |
| Marking area | 150 × 150 mm | |
| Focal distance | 210 mm | |
| Z-axis travel | 500 mm | |
| Min. marking height | 0.1 mm (depends on font) | |
| Single line width | 0.01 mm | |
| Working accuracy | 0.19 mm | |
| Operating panel | 10" touch panel, Laser Mark software | |
| Connectivity | USB, U-disk | |
| Fume extraction | Centrifugal suction unit | |
| Enclosure | With enclosure, red guide light | |
| Laser source life | 70,000 – 100,000 h | |
| Power consumption | 750 W | |
| Main supply | 220 V AC, 50–60 Hz, UPS protected | |
| Operating temperature | 0 – 40 °C | |
| Optional | AC panel cooling unit, remote option | |
