Hot Air Dryer
Hopper dryers from 60 to 600 litres for consistent pre-drying ahead of the press.
DryingMaterial Preparation
Overview
Seven insulated hopper dryers, 60 to 600 litres, each with its own heater bank and blower sized to the hopper. They drive surface moisture off granules before processing, which is what keeps splay and voids out of the part. All models run on a 415 V three-phase supply.
Specifications
- Models
- VAL-50 – VAL-600 (7)
- Hopper capacity
- 60 – 600 L
- Heater capacity
- 2.7 – 18 kW
- Blowing power
- 90 – 750 W
- Height
- 1040 – 1910 mm
- Supply
- 415 V, 3-phase
Applications
- Injection moulding
- Extrusion
- Blow moulding
Ask about this equipment
Send a duty cycle, a drawing, or just the problem. The inquiry arrives tagged to Hot Air Dryer.
Start an inquiryFull specification
Every model, as published
The figures above are the range across the series. These are the figures model by model, from the Valnex New Catalogue 2025. Customised versions are built to a client’s specification on request.

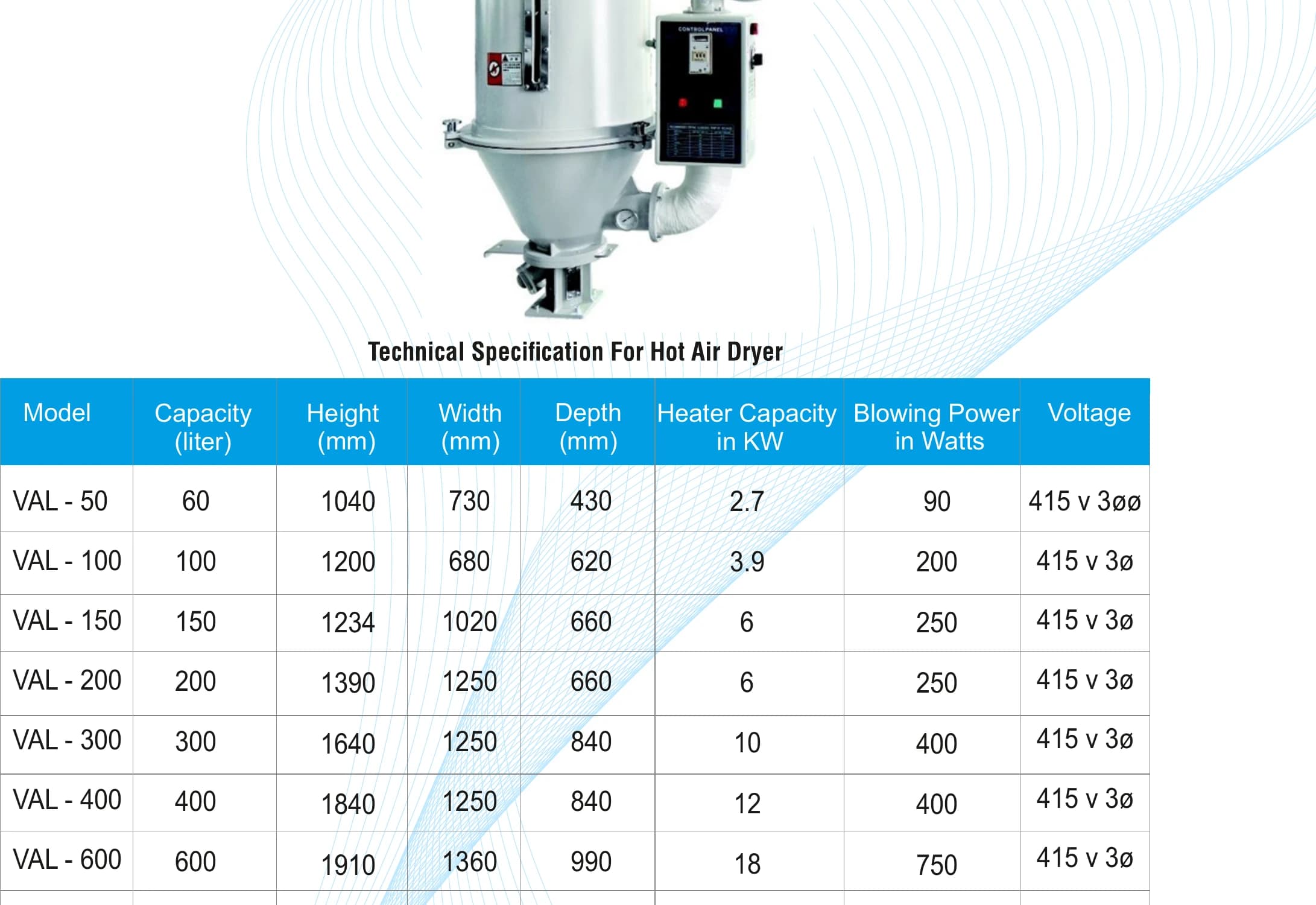

Hot air dryer series
8 models| Model | VAL-50 | VAL-100 | VAL-150 | VAL-200 | VAL-300 | VAL-400 | VAL-600 | VAL-800 |
|---|---|---|---|---|---|---|---|---|
| Hopper capacity (L) | 60 | 100 | 150 | 200 | 300 | 400 | 600 | 800 |
| Heater (kW) | 2.7 | 3.9 | 6 | 6 | 10 | 12 | 18 | 18 |
| Blower (W) | 90 | 200 | 250 | 250 | 400 | 400 | 750 | 750 |
| Height (mm) | 1040 | 1200 | 1234 | 1390 | 1640 | 1840 | 1910 | 2260 |
| Width (mm) | 730 | 680 | 1020 | 1250 | 1250 | 1250 | 1360 | 1370 |
| Depth (mm) | 430 | 620 | 660 | 660 | 840 | 840 | 990 | 980 |
| Supply | 415 V, 3-phase | |||||||
Swipe the table sideways for every model.
